Neodymium Magnet in CNC Manufacturing – Permanent Magnet Clamping Method


Clamping method directly determines the accuracy and efficiency of processing. In small quantities of many varieties of processing, universal jig is the preferred processing. Flexible use of universal fixture, you can make the impossible possible. When in the process of CNC milling of 0.5 ~ 4mm thickness aluminum or copper parts, the not-easy-to-master holding force of parts can be under control after using neodymium magnet auxiliary clamping method.

1. The Characteristics of Workpiece

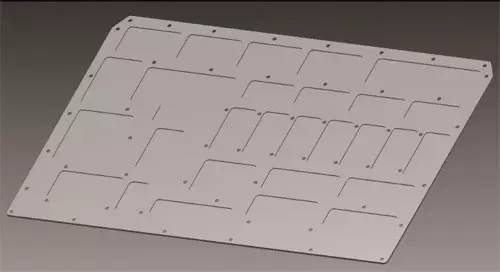

We often encounter many different sizes, small batch sheet metal components in the production. The materials for these sheet parts mostly are aluminum and brass. Although the shape is simple, the sheet is thin (generally having a thickness of 0.5 ~ 4mm and large (it is very common that the cover plate has more than 200mm × 200mm size). With high requirement of dimensional accuracy and geometric tolerance, these parts are very difficult to process.

When machining such parts, generally, it uses the combination clamping method of the flat tongs, parallels and squeeze horn for milling forming on the VMC (vertical machining centre), CNC milling machine and other devices. Since the parts have characteristics of low tensile strength and high ductility, combined with thin parts and large dimensions, clamping will easily caused deformed. When the clamping force is large, the middle part uplifts that will cause bad thickness and parallelism tolerance on the machined parts: thin on the side and thick on the middle. In addition, when the clamping force is small, the milling force is greater than the holding force, often resulting in displacement and then bringing scrap parts, which lead to great difficulty during processing.

Although the vacuum clamping method can guarantee clamping accuracy, the cost of professional jig is large and the CNC machining cutting fluid is needed that will damage the vacuum device. Therefore, the vacuum clamping method is not very suitable in low volume and rich varieties CNC machining. Based on the original clamping method, using a flexible strong rare earth magnet auxiliary clamping method is ideal to resolve this problem, and ensure the machining accuracy.

2. Methods Analysis of Permanent Magnet Clamping

Neodymium magnet is the strongest permanent magnet that can realize clamping requirements of small size and big magnetic force. You can select super strong sintered ndfeb magnets as auxiliary clamping plate part, placing them (size D15x10mm) in the middle of thin plate (see Figure 2) of clamping system.

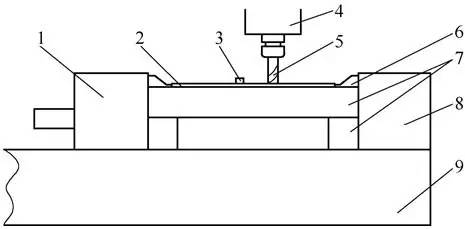

1. movable jaw  2. plate workpiece   3. strong magnet  4. spindle  5. milling cutter   6. squeeze iron  7. sizing block   8. fixed jaw  9. flat-nose pliers

Take a thickness of 2mm aluminum plate as an example, penetrating the cover plate, NdFeB magnet can grip the sizing block. Moreover, each piece of magnet can hold 1.8kg that is enough to overcome the pulling force produced by clamping deformation and cutter with cutting and firmly press the sheet workpiece on the sizing block without any arch. After testing, a size of φ15mm × 10mm magnet through different thickness of the sheet can produce strong magnetic force as shown in below Table.

magnetic force generated by the different thickness of the sheet in the size of φ15×10mm

3. The processing effect contrast of different clamping methods

As per below Table, compared with normal clamping method, the use of magnet increased the machining accuracy significantly.

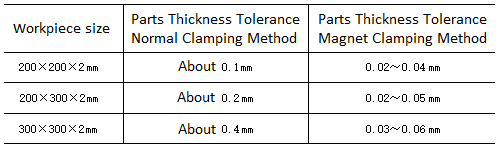

parts precision comparison between magnet and ordinary processing clamping method

In the amplifier cover, for example, the design requirement of thickness tolerance generally is 0.1mm. From Table 2, using common processing methods cannot guarantee the machining precision of parts, or simply cannot be processed; with the auxiliary method of magnet, parts precision fully meet the design requirement, meantime, it also provides a convenient operation for the workers.

4. Points for attention in the production

For a magnet auxiliary fixing method in production, you should pay attention to the following:

  1. Using squeeze iron fixture, you need to process sheets to ensure the accuracy of squeeze iron clamping.
  2. The accuracy of sizing block and flat-nose pliers directly affects the workpiece machining accuracy. Generally, for workpiece with the requirement of 0.05mm machining accuracy, it needs to adjust the flatness of flat-nose pliers and sizing block within 0.02mm.
  3. The distribution of strong magnets is flexibly. That means the neodymium magnet can be placed according to the size of the part and the machining position, and you can place several different size magnets to ensure sheet snapping horn. If necessary, you can complete part of the work first, and then pause to adjust the position of the magnet, and then finish another part of work to complete the process.
  4. For very small diameter or long overhang milling, pay attention to the impact of magnet to tool, placing magnet far away from machining path of tool.
  5. Based on milling depth of sheet processing, you can analyze the magnitude of force produced in the tool machining, if necessary, using methods like adoption of small-diameter end mill, small helix angle cutter, layered milling and cutting width reduction etc to reduce the force caused by the cutting.


Magnet auxiliary clamping method has some versatility, not only for thin aluminum CNC milling, but also for CNC milling with material of plastic, rubber, Teflon and other non-magnetic material sheet parts, while for grinding non-magnetic thin parts (such as stainless steel). This method is simple, easy to operate, and can provide a reference for the production of such parts.
